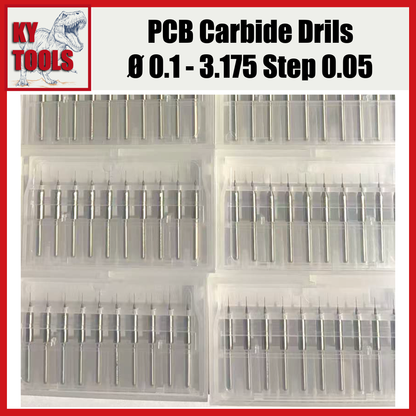

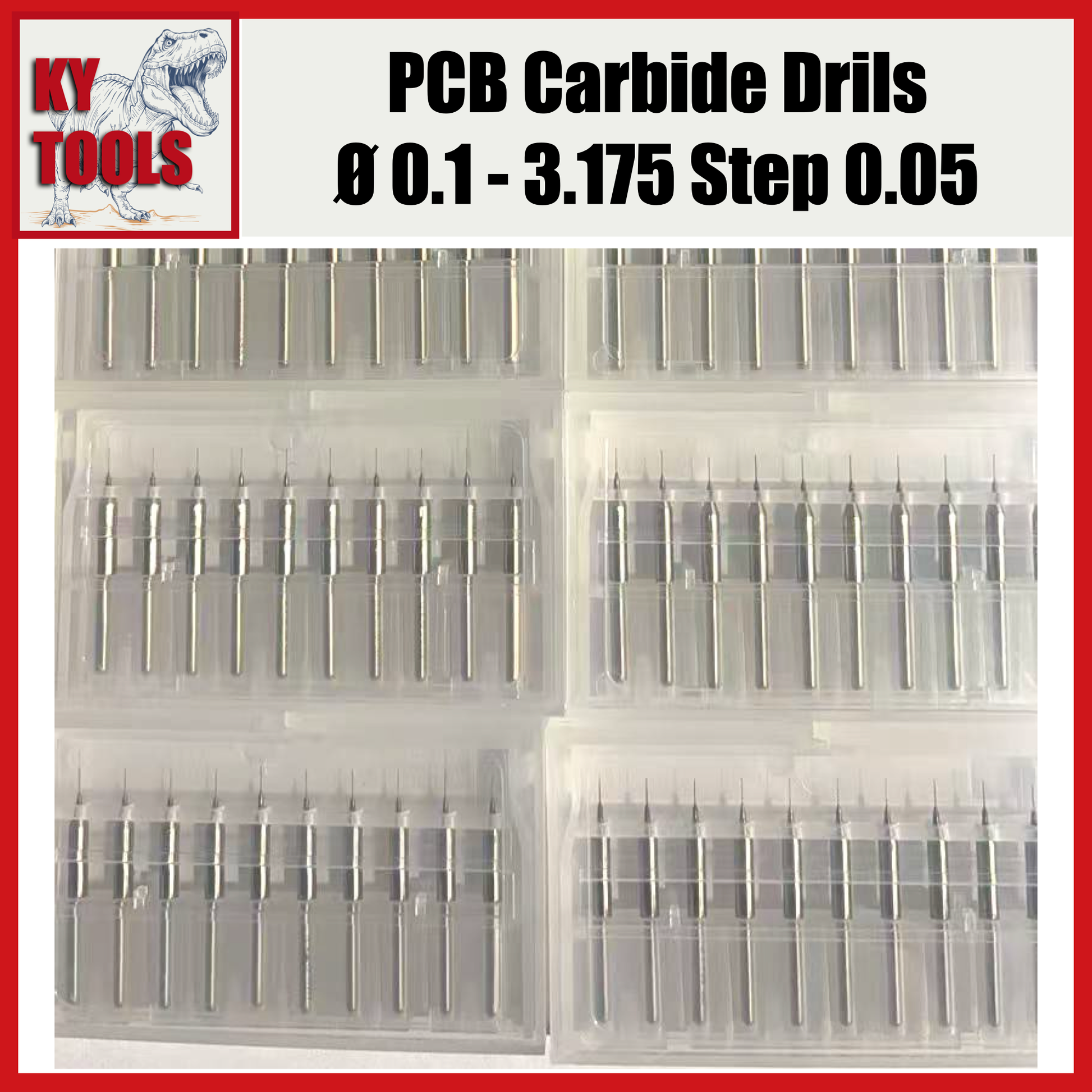

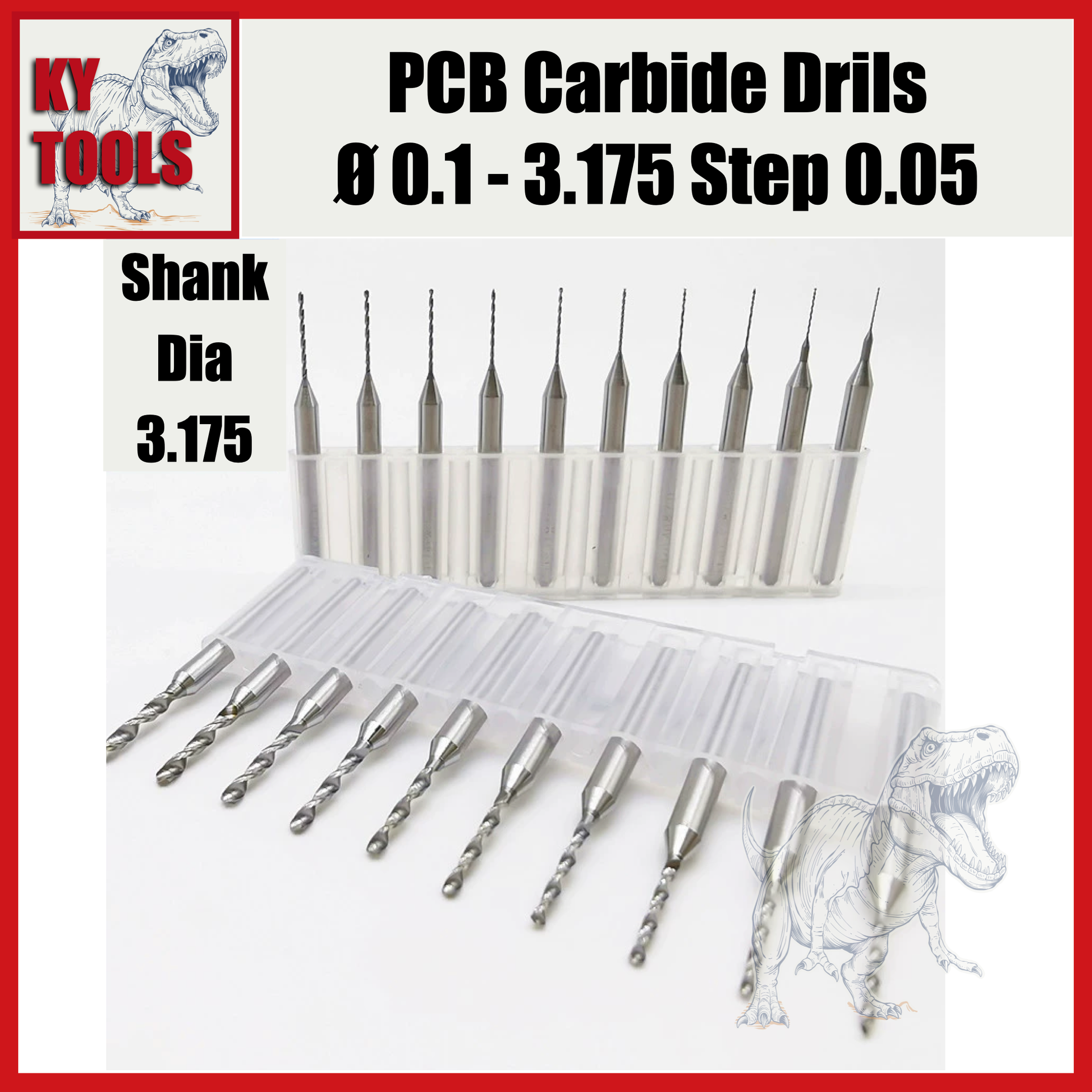

PCB Drills, Carbide, Uncoated, 0.15mm-3.175mm

£0.55 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Suitable Working Material:

Aluminum, Non-ferrous (N)

Tungsten Carbide Tools

Shipping Policy

Expected Time

Handling time (days), if in stock, it will take 0-2 days to prepare the package. If you are customizing some tools, it typically will take 0-7 days to prepare the package.

Transit time (days) to your address in 7-15 days. It will be shipped from China by International Express Delivery.

Region	Countries	Delivery Time
North America	United States, Canada, Mexico	7-15 business days
South America	Brazil, Argentina, Chile	10-20 business days
Asia	Japan, South Korea, Philippines, Indonesia, India, Pakistan	7-15 business days
Europe	Turkey, Russia, Poland, Germany, France, Italy, Belgium, Spain, United Kingdom	10-20 business days
Middle East	United Arab Emirates, Saudi Arabia	10-20 business days

Free Shipping Policy

Order over 79GBP/100USD will get free shipping, otherwise you need to pay 7.9GBP/10USD for the shipment fee.

If you need expedite express service, we'll provide UPS/DHL as well but you need add some shipment fee depend on the weight . It will take only 3-5 days to you.

Countries we are selling to

We are selling to countries: UK, US, Australia, Canada, Israel, India, Japan, Malaysia, New Zealand, Norway, Singapore, South Korea, Switzerland, Thailand, UAE, Vietnam, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,

💬

Need Assistance or Customize

Contact our Expert Team

Whatsapp Sales

447784618056

24/7

Email Us

sales@ky-tools.com

Our team is ready to assist

View full details

Description:

Package:

Price is for 1 Pic.
Packed each 10 Pic in 1 Plastic Case

Small Sizes:

Typically ranges from 0.1mm to 3mm in diameter to accommodate the tiny holes required for PCB vias and component leads.

Material:

Made from tungsten carbide or other hard materials to ensure durability and precision when drilling through PCB layers, which may include fiberglass, copper, or resin.

Applications:

Used in electronics manufacturing and prototyping.
Suitable for drilling through multilayer PCBs and creating vias or mounting points.

Use Cases:

Prototyping new circuit designs.
Modifying or repairing existing PCBs.
Making custom PCBs for hobby projects or small-scale production.

Full Spec

	Cut Ø	Cut Length	Shank Ø	OAL
10 Pic Cut Dia 0.1 mm, Cut Len 1.8 mm, Shank Dia 3.175mm,OAL 38 mm	0.1	1.8	3.175	38
10 Pic Cut Dia 0.15 mm, Cut Len 2.7 mm, Shank Dia 3.175mm,OAL 38 mm	0.15	2.7	3.175	38
10 Pic Cut Dia 0.2 mm, Cut Len 4.5 mm, Shank Dia 3.175mm,OAL 38 mm	0.2	4.5	3.175	38
10 Pic Cut Dia 0.25 mm, Cut Len 4.5 mm, Shank Dia 3.175mm,OAL 38 mm	0.25	4.5	3.175	38
10 Pic Cut Dia 0.3 mm, Cut Len 4.5 mm, Shank Dia 3.175mm,OAL 38 mm	0.3	4.5	3.175	38
10 Pic Cut Dia 0.35 mm, Cut Len 5.5 mm, Shank Dia 3.175mm,OAL 38 mm	0.35	5.5	3.175	38
10 Pic Cut Dia 0.4 mm, Cut Len 6 mm, Shank Dia 3.175mm,OAL 38 mm	0.4	6	3.175	38
10 Pic Cut Dia 0.45 mm, Cut Len 7 mm, Shank Dia 3.175mm,OAL 38 mm	0.45	7	3.175	38
10 Pic Cut Dia 0.5 mm, Cut Len 7 mm, Shank Dia 3.175mm,OAL 38 mm	0.5	7	3.175	38
10 Pic Cut Dia 0.55 mm, Cut Len 7 mm, Shank Dia 3.175mm,OAL 38 mm	0.55	7	3.175	38
10 Pic Cut Dia 0.6 mm, Cut Len 8 mm, Shank Dia 3.175mm,OAL 38 mm	0.6	8	3.175	38
10 Pic Cut Dia 0.65 mm, Cut Len 8 mm, Shank Dia 3.175mm,OAL 38 mm	0.65	8	3.175	38
10 Pic Cut Dia 0.7 mm, Cut Len 8 mm, Shank Dia 3.175mm,OAL 38 mm	0.7	8	3.175	38
10 Pic Cut Dia 0.75 mm, Cut Len 8 mm, Shank Dia 3.175mm,OAL 38 mm	0.75	8	3.175	38
10 Pic Cut Dia 0.8 mm, Cut Len 10 mm, Shank Dia 3.175mm,OAL 38 mm	0.8	10	3.175	38
10 Pic Cut Dia 0.85 mm, Cut Len 10 mm, Shank Dia 3.175mm,OAL 38 mm	0.85	10	3.175	38
10 Pic Cut Dia 0.9 mm, Cut Len 10 mm, Shank Dia 3.175mm,OAL 38 mm	0.9	10	3.175	38
10 Pic Cut Dia 0.95 mm, Cut Len 10 mm, Shank Dia 3.175mm,OAL 38 mm	0.95	10	3.175	38
10 Pic Cut Dia 1 mm, Cut Len 11 mm, Shank Dia 3.175mm,OAL 38 mm	1	11	3.175	38
10 Pic Cut Dia 1.05 mm, Cut Len 11 mm, Shank Dia 3.175mm,OAL 38 mm	1.05	11	3.175	38
10 Pic Cut Dia 1.1 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.1	12	3.175	38
10 Pic Cut Dia 1.15 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.15	12	3.175	38
10 Pic Cut Dia 1.2 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.2	12	3.175	38
10 Pic Cut Dia 1.25 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.25	12	3.175	38
10 Pic Cut Dia 1.3 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.3	12	3.175	38
10 Pic Cut Dia 1.35 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.35	12	3.175	38
10 Pic Cut Dia 1.4 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.4	12	3.175	38
10 Pic Cut Dia 1.45 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.45	12	3.175	38
10 Pic Cut Dia 1.5 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.5	12	3.175	38
10 Pic Cut Dia 1.55 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.55	12	3.175	38
10 Pic Cut Dia 1.6 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.6	12	3.175	38
10 Pic Cut Dia 1.65 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.65	12	3.175	38
10 Pic Cut Dia 1.7 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.7	12	3.175	38
10 Pic Cut Dia 1.75 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.75	12	3.175	38
10 Pic Cut Dia 1.8 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.8	12	3.175	38
10 Pic Cut Dia 1.85 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.85	12	3.175	38
10 Pic Cut Dia 1.9 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.9	12	3.175	38
10 Pic Cut Dia 1.95 mm, Cut Len 12 mm, Shank Dia 3.175mm,OAL 38 mm	1.95	12	3.175	38
10 Pic Cut Dia 2 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2	13	3.175	38
10 Pic Cut Dia 2.05 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2.05	13	3.175	38
10 Pic Cut Dia 2.1 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2.1	13	3.175	38
10 Pic Cut Dia 2.15 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2.15	13	3.175	38
10 Pic Cut Dia 2.3 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2.3	13	3.175	38
10 Pic Cut Dia 2.5 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2.5	13	3.175	38
10 Pic Cut Dia 2.8 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2.8	13	3.175	38
10 Pic Cut Dia 2.9 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	2.9	13	3.175	38
10 Pic Cut Dia 3.0 mm, Cut Len 13 mm, Shank Dia 3.175mm,OAL 38 mm	3.0	13	3.175	38
