Description:

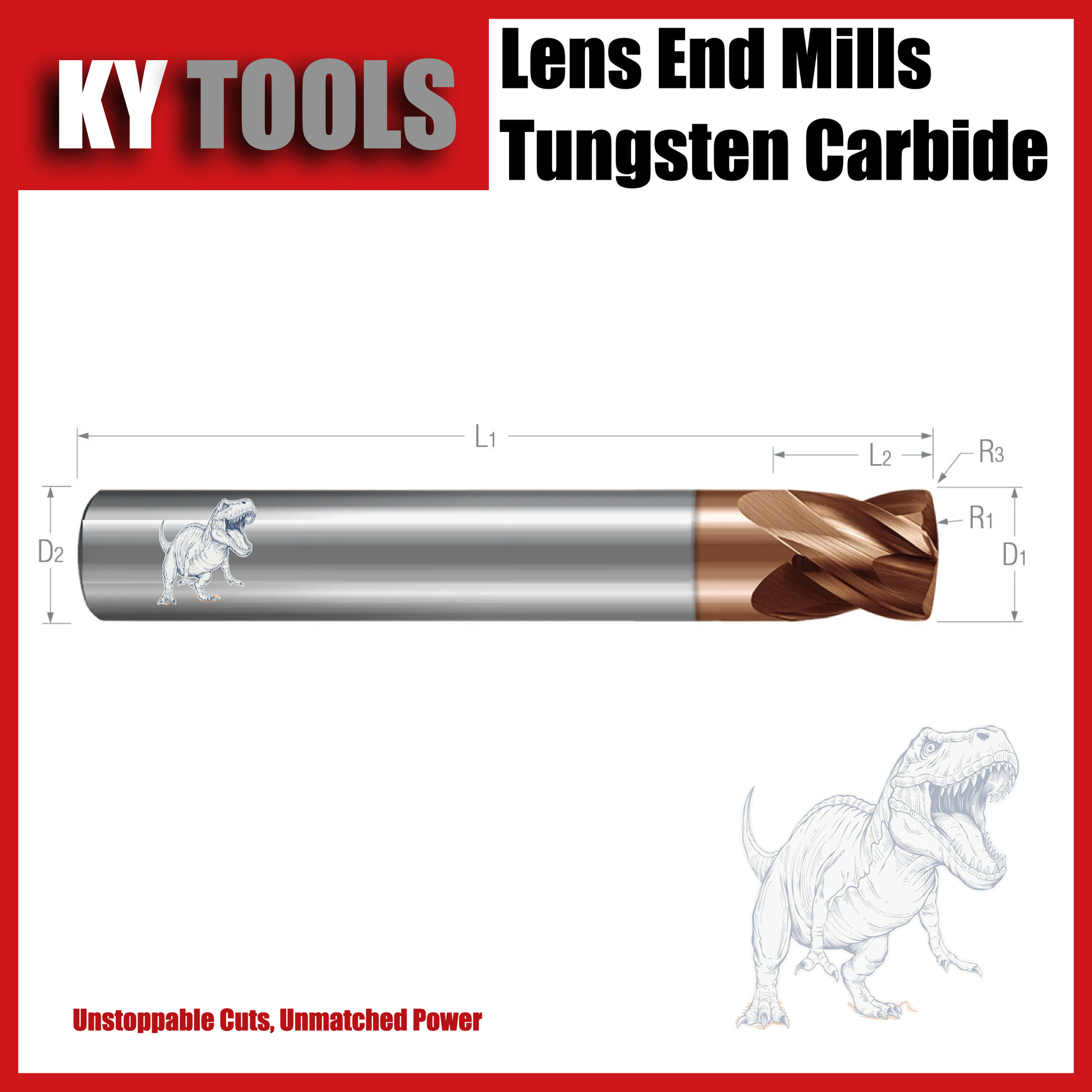

Multi - Axis Finishers - 4/6Flute - Lens Form
Features
- Factory Directly. OEM factory for German / Japan / Korean Brands
- Exceptional Quality at the Best Price
- Specially defined profile for massive reductions in cycle time and vastly improved surface finish

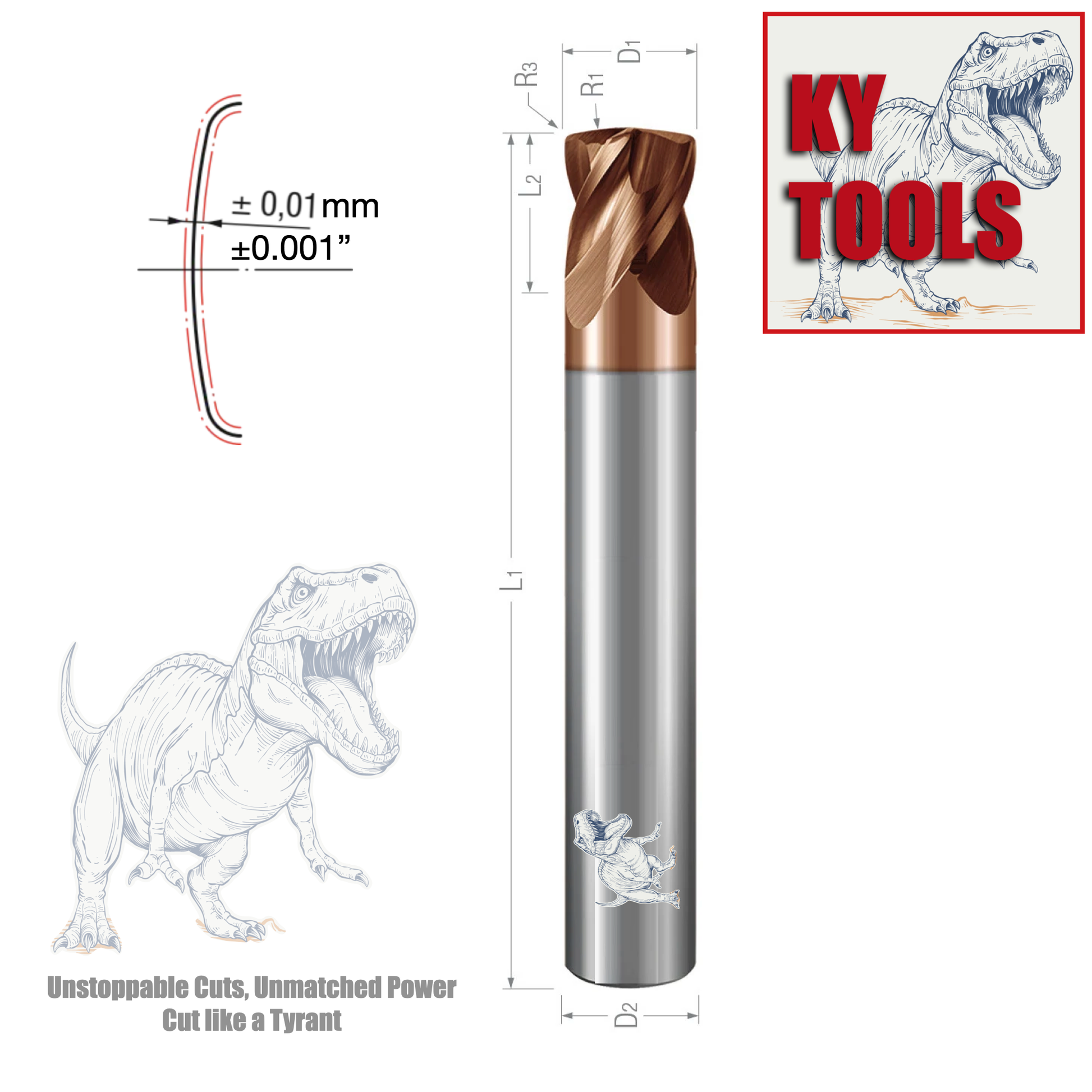

- Lens form with two tangential radii for finishing floors
- 3 flute geometry specifically designed for finishing in aluminum and non-ferrous alloys
- Center cutting
- h6 shank tolerance for high precision tool holders
- Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
- Solid carbide
- Welcome customize
- Coated by subsidiary factory of Sandvik.
- Work Material ranges from: Aluminum, Forged Steel, High-Speed Steel (HSS), Stainless Steel, Titanium, Copper, Brass, Mild Steel, Carbon Steel, Alloy Steel, Tool Steel, Cast Iron, Plastics, Composites, and more.

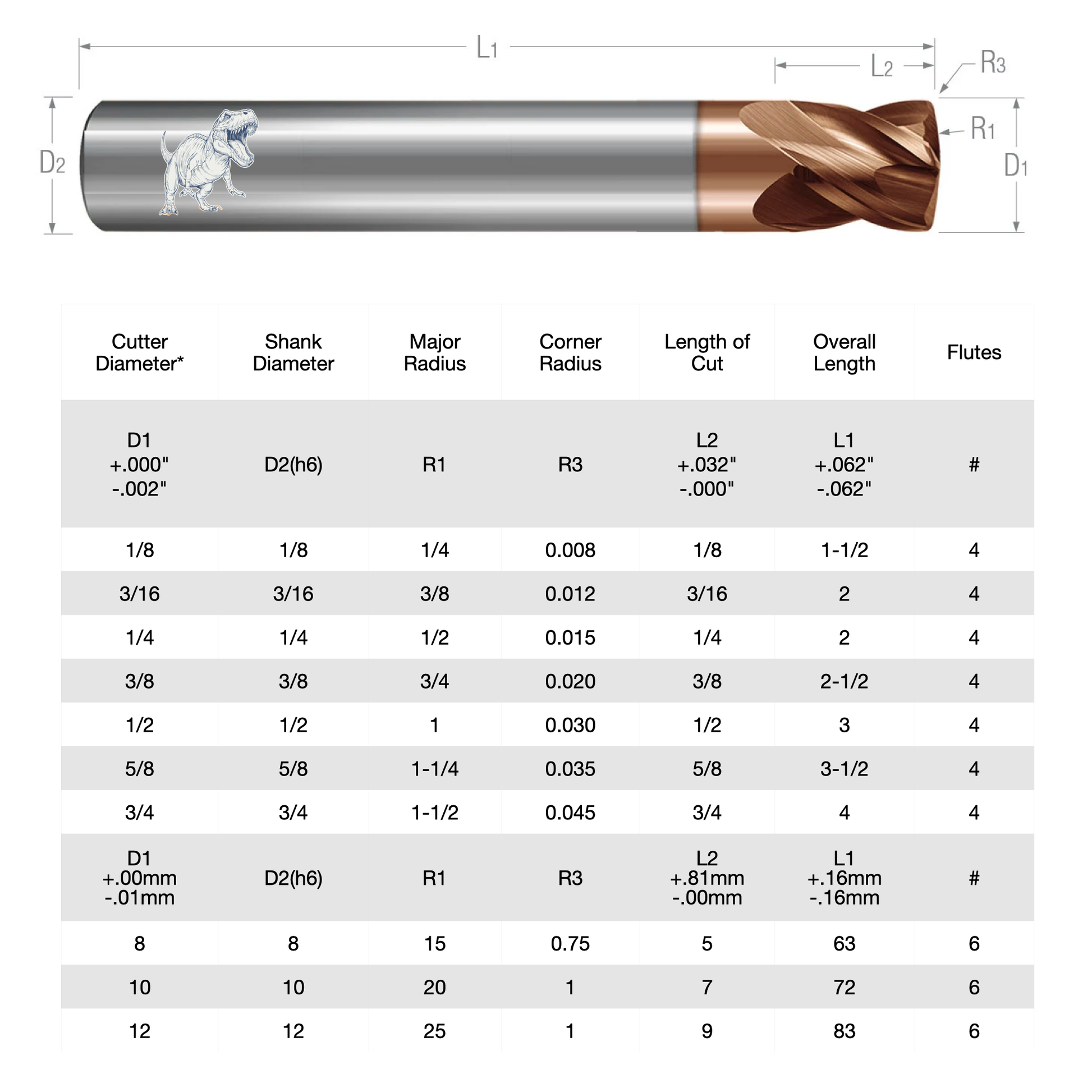

Spec
Comparison ECO vs PRO vs Ultra
|
Feature |
Eco |
Pro |
Ultra |
|
|
|
|
|
|
Recommended Use |
Cost-effective **Impossible price possible by massive production** Lowest Price Carbide End Mills in the world, Secret tools why china CNC parts is ultra cheap and competitive |
General production. Sweet Spot Between Price and Performance |
High-volume or precision work Pursuing the world’s best end mills |
|
Comparable to Brands |
Amazon, Ebay, Aliexpress, no-brand: onlinecarbide, speed tiger, zcc-ct, mts |
Japan / Korea premium brands: YG-1, Hass, OSG, Union, Mitsubishi, |
Walter, Guhring, Seco, Sandvik |
|
Suitable Materials |
Aluminum, brass, plastics, steels ≤55 HRC |
Stainless, alloy steels ≤60 HRC |
Hardened steels ≤65 HRC, titanium, nickel alloys |
|
Cutting Hardness |
≤HRC 55 |
≤HRC 60 |
≤HRC 65 |
|
Tungsten Carbide Grade |
Standard |
Premium, HV>91.5, Grain Size 0.8um |
Best, HV>92.3, Grain Size 0.6um |
|
Coating |
Bronze TiSiN Coating (Option: Blue nACo coating, link) |
Bronze XL-H Coating HV 3300/1100 ℃/2012℉ Coated by subsidiary of Sandvik |
Bright Bronze XL-R Coating HV 3300/1100 ℃/2012℉ Coated by subsidiary of Sandvik |
|
Surface Finish Quality |
Standard |
Fine |
Mirror-like |
|
Feed-rate Capability |
Low |
Medium |
High |
|
Tolerance / Accuracy |
±0.05 mm |
-0.02 mm |
-0.01 mm |
|
Unequal Flute |
– |
✔ |
✔ |
|
Variable Helix |
– |
– |
✔ |
|
Grinding Equipment |
🇨🇳China/Taiwan CNC grinder |
🇯🇵Japan Makino /🇦🇺 Australia ANCA grinder |
🇩🇪German Walter grinder |
|
Abrasive / Polishing |
– |
Traditional |
Elastic polishing |
|
Heat / Wear Resistance |
Basic |
Good |
Excellent |
|
Vibration During Cutting |
High |
Medium |
Low |
|
Edge Retention |
Moderate |
Strong |
Outstanding |
|
Resharpening |
Limited |
Possible |
Recommended |
|
Tool Life |
Acceptable |
Good |
Long, we commit over 4.5 hours on titanium |
|
Price Level |
★ (economical) |
★★ (balanced) |
★★★ (premium) |
|
Best Industries / Jobs |
Cost-sensitive fabrication |
Mold bases, fixtures, general machining |
Aerospace, die & mold, medical, high-tolerance parts |
Carbide CNC Cutters Source Factory with Advance Equipment
Our factory is equipped with the latest CNC machinery and precision tools, ensuring the production of high-quality carbide end mills, drill bits, and reamers. With over 30 years of experience, we guarantee precise manufacturing, fast delivery, and global shipping.
