Description:

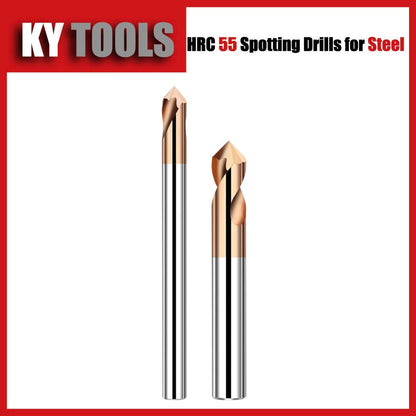

KYTools' High-Performance Spotting Drills are designed for exceptional precision and stability in demanding drilling applications. With a highly engineered point design and advanced features, these tools ensure optimal positioning and outstanding results for high-performance drilling tasks.
Key Features:
- Incredible Accuracy for High-Performance Drilling: Engineered point design provides superior positioning and stability.
- Reduced Walking: Thinned web minimizes walking for precise starts.
- Angle Tolerance: +2° / -0° for reliable performance.
- Uncoated Option: Ideal for spot drilling Aluminum Alloys and other Non-Ferrous materials.
- Proprietary XL-H Coating: KYTools' advanced XL-H Coating extends tool life and enhances heat resistance for ferrous materials, including Alloy Steels, Stainless Steels, Nickel Alloys, and high-hardness materials. Coating hardness up to HV3000 and working temperature up to 1100 celsius degrees.
- Material: Solid carbide construction for exceptional durability and performance.
- Precision Manufacturing: Proudly made in the CN.
Achieve superior accuracy and durability with KYTools' Spotting Drills, engineered for professionals who demand the best.
|
|
CUTTER DIAMETER (D1) * |
INCL. ANGLE |
SHANK DIAMETER (D2) * |
OVERALL LENGTH (L1) * |
|
Φ1*90°50 |
1 |
90 |
4 |
50 |
|
Φ1.5*90°50 |
1.5 |
90 |
4 |
50 |
|
Φ2*90°50 |
2 |
90 |
4 |
50 |
|
Φ3*90°50 |
3 |
90 |
4 |
50 |
|
Φ4*90°50 |
4 |
90 |
4 |
50 |
|
Φ5*90°50 |
5 |
90 |
6 |
50 |
|
Φ6*90°50 |
6 |
90 |
6 |
50 |
|
Φ8*90°60 |
8 |
90 |
8 |
60 |
|
Φ10*90°*75 |
10 |
90 |
10 |
75 |
|
Φ12*90°*75 |
12 |
90 |
12 |
75 |
|
3*90°*100 |
3 |
90 |
3 |
100 |
|
4*90°*100 |
4 |
90 |
4 |
100 |
|
5*90°*100 |
5 |
90 |
5 |
100 |
|
6*90°*100 |
6 |
90 |
6 |
100 |
|
8*90°*100 |
8 |
90 |
8 |
100 |
|
10*90°*100 |
10 |
90 |
10 |
100 |
|
12*90°*100 |
12 |
90 |
12 |
100 |
|
14*90°*100 |
14 |
90 |
14 |
100 |
|
16*90°*100 |
16 |
90 |
16 |
100 |
|
18*90°*100 |
18 |
90 |
18 |
100 |
|
20*90°*100 |
20 |
90 |
20 |
100 |
Carbide CNC Cutters Source Factory with Advance Equipment
Our factory is equipped with the latest CNC machinery and precision tools, ensuring the production of high-quality carbide end mills, drill bits, and reamers. With over 30 years of experience, we guarantee precise manufacturing, fast delivery, and global shipping.
