Types of Tungsten Carbide End Mills: A Comprehensive Guide

Introduction:

When it comes to precision machining, carbide (also known as tungsten steel) end mills are indispensable tools. Known for their durability and ability to perform at high speeds, carbide end mills are used across various industries, including aerospace, automotive, and medical device manufacturing. In this guide, we will explore the different types of carbide end mills, their applications, and how to choose the right one for your project.

What Are Carbide End Mills?

Carbide end mills are cutting tools made from a combination of tungsten carbide and other metals. Tungsten carbide is known for its hardness, wear resistance, and ability to withstand high temperatures, making it the ideal material for machining tough materials like steel, aluminum, and titanium. These end mills come in various shapes and sizes, each suited for specific cutting tasks.

Carbide end mills are widely used in milling operations, such as face milling, slot milling, and contouring. They are available in solid carbide and carbide-coated versions, each offering specific advantages depending on the material being machined and the operation requirements.

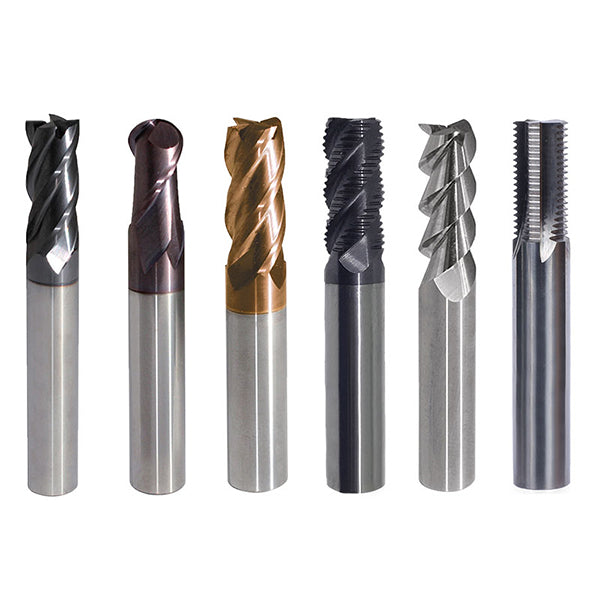

Types of Carbide End Mills:

1. Square End Mills (Buy Link https://ky-tools.com/collections/milling-tools)

   Description: Square end mills have a flat cutting edge and are ideal for making sharp corners and square shoulders. These end mills are commonly used for general-purpose milling, including side milling, slotting, and contouring.

   Applications:

   • Side milling and slotting

   • Cutting materials like steel, aluminum, and plastics

   • Creating flat surfaces and tight tolerances

   Advantages:

   • Produces clean, sharp edges

   • Ideal for making precise cuts in general machining tasks

2. Ball Nose End Mills (Buy Link https://ky-tools.com/collections/milling-tools)

   Description: Ball nose end mills have a rounded cutting edge, making them suitable for curved surfaces and 3D contouring. These are often used in high-precision tasks like mold making and die sinking.

   Applications:

   • 3D contouring and surface finishing

   • Machining molds and complex geometric shapes

   • Profiling curved surfaces

   Advantages:

   • Provides smooth finishes on curved surfaces

   • Ideal for complex, 3D machining projects

3. Corner Radius End Mills (Buy Link https://ky-tools.com/collections/milling-tools)

   Description: Corner radius end mills combine the benefits of square end mills and ball nose end mills. They have a rounded corner at the cutting edge, offering greater durability and improved cutting performance compared to square end mills.

   Applications:

   • Creating rounded corners

   • Side milling and finishing tasks

   • Reducing tool wear in tough materials

   Advantages:

   • Provides better edge strength compared to square end mills

   • Suitable for both roughing and finishing applications

4. Tapered End Mills

   Description: Tapered end mills feature a conical shape, allowing them to cut at an angle. These mills are ideal for projects requiring precision and detail, such as engraving, creating angled features, and machining deep pockets.

   Applications:

   • Engraving and carving at angles

   • Machining deep pockets or chamfering edges

   • Making complex shapes or contours

   Advantages:

   • Ideal for machining deep, angled features

   • Allows for the creation of intricate details and angles in materials

5. Indexable End Mills

   Description: Indexable end mills feature replaceable cutting inserts or tips. These tools are designed for high-volume production and can be easily replaced when worn out, providing cost efficiency in long-running operations.

   Applications:

   • High-speed, high-volume machining operations

   • Face milling and side milling

   • Reducing tool change time in mass production

   Advantages:

   • Cost-effective for high-volume jobs

   • Easy to replace worn inserts without replacing the entire tool

6. High Helix End Mills (Buy Link https://ky-tools.com/collections/milling-tools)

   Description: High helix end mills have a higher flute angle, which makes them ideal for cutting softer materials and achieving a higher cutting speed. The increased angle helps improve chip removal and surface finish.

   Applications:

   • Cutting softer metals like aluminum

   • Achieving faster material removal rates

   • Producing smoother finishes

   Advantages:

   • Improved chip evacuation and faster cutting speeds

   • Ideal for softer materials and high-speed machining

7. Roughing End Mills (Buy Link https://ky-tools.com/collections/milling-tools)

   Description: Roughing end mills are designed for aggressive cutting and material removal. These mills are often used in the first stage of a two-step machining process, where the goal is to remove large amounts of material quickly.

   Applications:

   • Heavy-duty material removal

   • Pre-finishing operations before a finer tool is used

   • Cutting tough materials like steel or cast iron

   Advantages:

   • Faster material removal rates

   • Minimizes wear on finer finishing tools

How to Choose the Right Carbide End Mill

Choosing the right carbide end mill depends on several factors, including the material you’re cutting, the required surface finish, and the type of machining operation. Here are some tips to help you make the right selection:

• Material: For tougher materials like stainless steel or titanium, choose solid carbide end mills with coatings like TiAlN (Titanium Aluminum Nitride) for enhanced durability. For softer metals like aluminum, high helix or roughing end mills are ideal for faster material removal.

• Application: Consider whether you need to make precise cuts (square or corner radius end mills) or if you need to machine complex shapes (ball nose or tapered end mills).

• Tool Life: If you're working on high-volume production, indexable end mills can reduce tool replacement costs and downtime. For precision, solid carbide end mills will give you superior performance.

Conclusion:

Carbide (tungsten steel) end mills are essential tools for precision machining. Whether you're working with aluminum, steel, or titanium, understanding the different types of carbide end mills and their applications will help you achieve the best results for your project. From general-purpose square end mills to highly specialized ball nose and tapered end mills, each type offers unique advantages for specific tasks.

At KYTOOLS, we offer a comprehensive range of high-quality carbide end mills designed for various applications. Browse our collection today to find the perfect tool for your next machining project.
