How to Choose the Right Carbide Drill for Your Project: A Comprehensive Guide

Introduction:

Selecting the right carbide drill for your machining project can make all the difference in achieving precision, efficiency, and long tool life. With a variety of options available, it’s important to understand the key factors that influence drill performance. In this comprehensive guide, we'll walk you through the essential considerations for choosing the right carbide drill, ensuring you get the best results for your project.

1. Understand the Type of Carbide Drill You Need

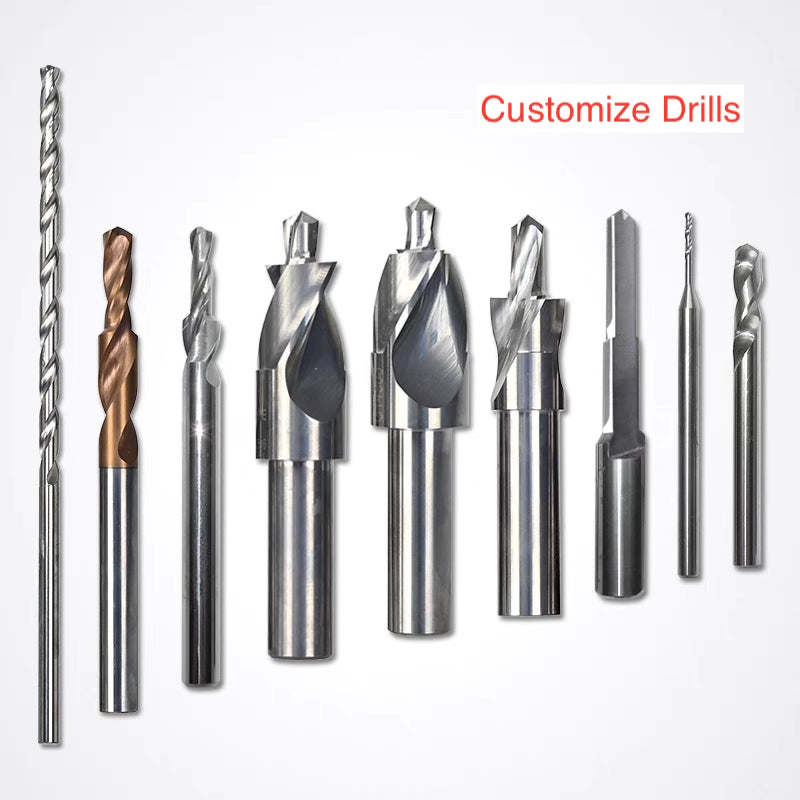

Carbide drills come in different types, each designed for specific applications. The two most common types are solid carbide drills and tip exchangeable drills. Here’s a breakdown of each:

• Solid Carbide Drills: These are made entirely of carbide and are best known for their strength and wear resistance. They are ideal for high-speed, high-precision drilling into tough materials like stainless steel, titanium, and hardened alloys.

• Tip Exchangeable Drills: These drills have a replaceable carbide tip that can be swapped out when worn, offering a more cost-effective solution for high-volume production. They are suitable for applications where tool life is important but not as critical as in high-precision tasks.

Which One to Choose?

• For high-performance, high-precision work, solid carbide drills are your best option.

• For high-volume or less demanding tasks, tip exchangeable drills may be more cost-effective and flexible.

2. Consider the Material You Are Drilling

Different materials require different types of carbide drills. The hardness, brittleness, and overall composition of the material should guide your selection. Here are some examples:

• Hard Metals (Stainless Steel, Titanium): Choose solid carbide drills designed for high-speed machining. Look for drills with coatings like TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) to improve performance and tool life.

• Soft Metals (Aluminum, Brass): For softer metals, you can opt for standard carbide drills or even high-speed steel drills. However, carbide drills still offer the best performance when drilling at higher speeds.

• Composites (Carbon Fiber, Plastics): Specialized carbide drills for composite materials have coatings or geometries designed to prevent chipping and material buildup.

Tip: Always match the drill material with the workpiece material to ensure the best cutting efficiency and tool life.

3. Evaluate the Drill’s Geometry

The geometry of a carbide drill plays a major role in its cutting performance. Consider the following aspects:

• Point Angle: The point angle determines how the drill will cut through the material. A 118° point angle is the most common for general drilling, while a 135° point angle is ideal for harder materials because it provides a sharper, more durable cutting edge.

• Helix Angle: The helix angle affects chip removal. A higher helix angle (around 30-35°) is ideal for high-speed drilling, as it ensures smooth chip removal, while a lower helix angle (around 15-20°) is suitable for general applications.

• Flute Design: The number of flutes and their design influence chip removal and drill stability. For deep-hole drilling, choose a drill with deeper flutes to allow for better chip evacuation.

Tip: Always select a drill with the appropriate geometry for your specific drilling task to optimize performance and prevent tool wear.

4. Choose the Right Coating

Carbide drills are often coated to improve performance and longevity. Some common coatings include:

• TiN (Titanium Nitride): Increases wear resistance and extends tool life. Ideal for general-purpose drilling in softer materials.

• TiAlN (Titanium Aluminum Nitride): Excellent for high-temperature applications and drilling harder materials like stainless steel.

• Diamond Coating: Used for abrasive materials like carbon fiber and composites, providing the hardest surface for enhanced wear resistance.

Tip: The right coating depends on the material you're drilling and the type of drilling operation you're performing. Coatings can increase tool life and reduce friction, improving overall performance.

5. Consider the Hole Depth and Diameter

The size and depth of the hole you need to drill can also influence your choice of carbide drill:

• Shallow Holes: For shallow holes, standard-length drills with a regular flute design will suffice.

• Deep Holes: For deep hole drilling, consider deep hole drills or drills with longer flutes. These are designed to evacuate chips efficiently from deeper holes and reduce the risk of clogging.

• Hole Diameter: Choose a carbide drill that fits the desired hole diameter. Drills come in various sizes, and it's crucial to select the correct one for your project to ensure the desired accuracy and performance.

Tip: Always consider the drill’s capacity in relation to your specific application to ensure the best results.

6. Assess the Cutting Speed and Feed Rate

Carbide drills perform best when operated at the appropriate cutting speeds and feed rates. Here’s how to optimize both:

• Cutting Speed: This is the speed at which the drill bit moves through the material. For carbide drills, higher cutting speeds generally provide better results, especially when drilling harder materials.

• Feed Rate: The feed rate is how fast the drill advances into the material. Higher feed rates are effective in high-volume production, while lower feed rates provide more precision in delicate applications.

Tip: Always consult the manufacturer’s guidelines for optimal cutting speed and feed rate based on your specific material and application.

7. Consider the Cost vs. Performance

Carbide drills are an investment, and choosing the right one is a balance between cost and performance. While solid carbide drills may be more expensive upfront, their superior performance and longer tool life can provide long-term savings. On the other hand, tip exchangeable drills offer a more budget-friendly option for high-volume applications.

Tip: If precision and tool life are crucial for your project, invest in high-quality solid carbide drills. For less demanding applications, tip exchangeable drills offer a more cost-effective solution.

Conclusion:

Choosing the right carbide drill for your project is crucial for achieving efficiency, precision, and long tool life. By considering factors such as material, drill geometry, coating, and hole depth, you can ensure that you select the best drill for your needs. Whether you’re working with high-precision aerospace components or mass-producing automotive parts, the right carbide drill can make all the difference.
