Description:

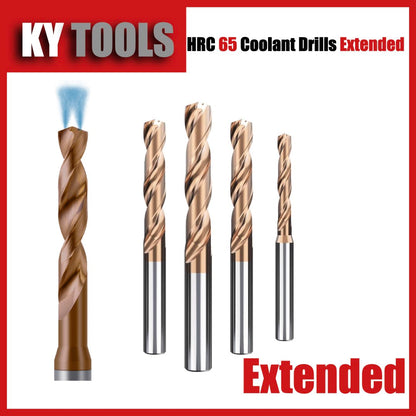

KYTools High-Performance Drills - Steels - Coolant-Through
KYTools' High-Performance Drills are engineered to deliver exceptional performance in 4140 Steel and other alloy steels. Featuring coolant-through channels and advanced design, these drills set the standard for efficiency, precision, and durability.
Key Features:
- Unmatched Performance for 4140 Steel: Optimized for best-in-class results in 4140 Steel and superior performance across a wide range of steels and alloy steels.
- Versatile Application: Excels in Stainless Steels and Cast Iron, ensuring reliable results in diverse materials.
- Coolant-Through Channels: Enhances chip evacuation for efficient and clean drilling.
- Advanced Geometry: Double margin geometry ensures stability and precision when drilling intersecting holes or exiting on inclined or irregular surfaces.
- Polished for Perfection: Pre- and post-polish processes reduce friction and improve chip management.
- 120° Point Angle: Designed with 4-facet geometry for improved self-centering and reduced wandering.
- High Precision: h6 shank tolerance ensures compatibility with precision tool holders.
- Proprietary XL-H Coating: KYTools' advanced XL-H Coating extends tool life and enhances heat resistance for ferrous materials, including Alloy Steels, Stainless Steels, Nickel Alloys, and high-hardness materials. Coating hardness up to HV3000 and working temperature up to 1100 celsius degrees.
- Material: Solid carbide for exceptional strength and durability.
- Made in the CN: Precision-engineered and manufactured to the highest standards.
Elevate your drilling capabilities with KYTools' Coolant-Through High-Performance Drills—designed for professionals who demand unparalleled accuracy and performance.
|
|
CUTTER DIAMETER (D1) * |
LENGTH OF CUT (L2) * |
SHANK DIAMETER (D2) * |
OVERALL LENGTH (L1) * |
|
D2.0x20xD4.0x50 |
2 |
20 |
4 |
50 |
|
D3.0x20xD4.0x50 |
3 |
20 |
4 |
50 |
|
D5.0x35xD6.0x70 |
5 |
35 |
6 |
70 |
|
D6.0x35xD6.0x70 |
6 |
40 |
6 |
70 |
|
D7.0x40xD8.0x80 |
7 |
40 |
8 |
80 |
|
D8.0x40xD8.0x80 |
8 |
40 |
8 |
80 |
|
D9.0x60xD10.0x100 |
9 |
60 |
10 |
100 |
|
D10x60xD10.0x100 |
10 |
60 |
10 |
100 |
|
D11x60xD12.0x100 |
11 |
60 |
12 |
100 |
|
D12x60xD12.0x100 |
12 |
60 |
12 |
100 |
|
D13x60xD14.0x100 |
13 |
60 |
14 |
100 |
|
D14x60xD14.0x100 |
14 |
60 |
14 |
100 |
