Description:

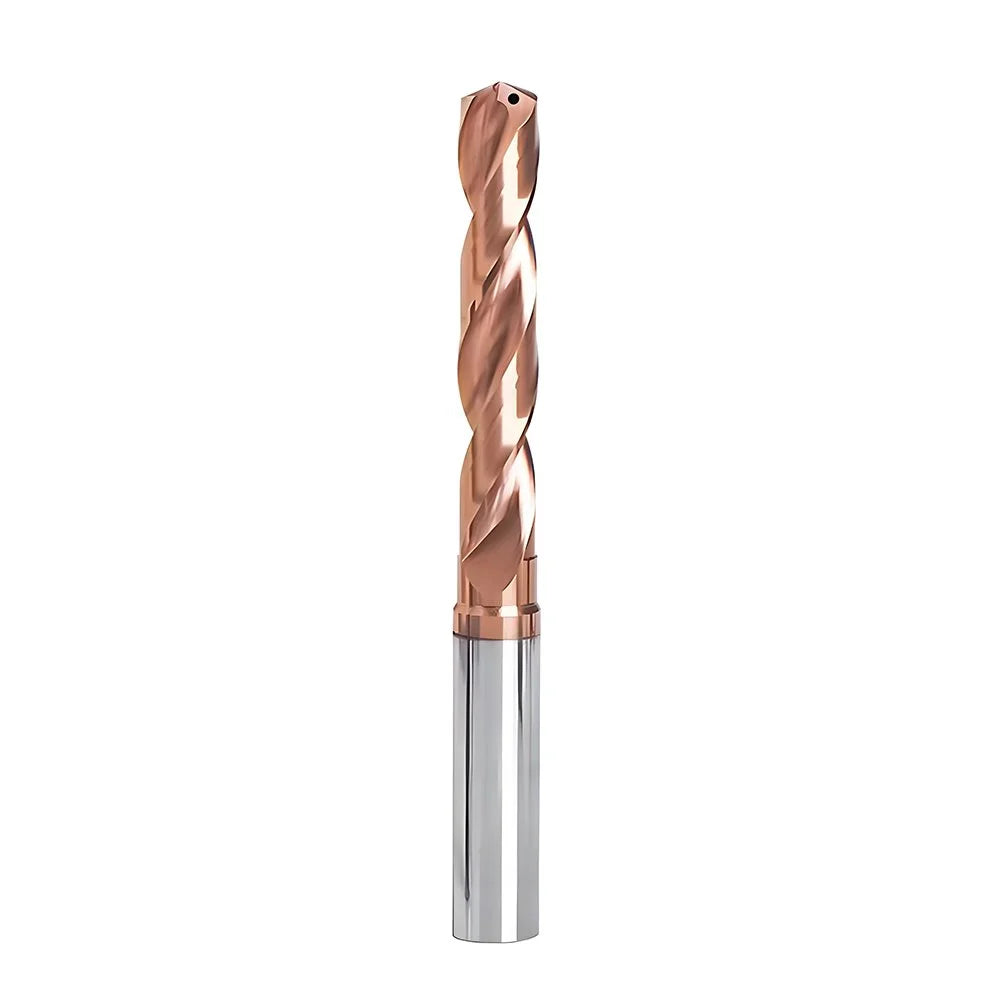

The Solid Carbide Spiral Drill with internal cooling has been specifically developed to meet the highest requirements in industrial drilling technology. This high-performance drill impresses with its exceptional versatility and efficiency in processing a variety of materials, including steel, stainless steel, cast iron, heat-resistant superalloys, and titanium.
Features
- Versatile Applicability: Suitable for a variety of materials, perfect for diverse industrial applications
- Effective Internal Cooling: Integrated coolant channels improve cooling directly at the cutting tip and increase tool life
- Optimized Centering Performance: Unique center tip design allows for precise and clean drilling
- Strong cutting edges and smooth chip flow
- Continuous, smooth flute surface with no obstructions to chip flow, preventing chip clogging and forming well-shaped chips
- Excellent wear resistance and high-speed machining enabled by the combination of ultra-fine cemented carbide and TiSiN coating
Specs
| Use for | Drilling/Step Processing | Tool Material | Carbide |
|---|---|---|---|
| Workpiece Material | General Steel / Tempered Steel / High Hardness Steel (up to HRC55) / Stainless Steel / Cast Iron / Aluminum / Titanium / Copper | Coating | TiSiN Coating |
| Flute | 2 | Flute | 2 |
| Tool Made By | Germany Walter CNC Grinder Checked By Germany Zoller Inspector |
Shank Norm | DIN 6535 HA Straight Cylinder shank without clamping surface |
| Cutter Tolerance | 0～+0.005 m7 |
Shank Tolerance | ≤h6 H7 |
Product Table
Product Table
| Code | CUTTER DIAMETER (D1) * | LENGTH OF CUT (L2) * | SHANK DIAMETER (D2) * | OVERALL LENGTH (L1) * |
|---|---|---|---|---|
| D1 | L2 | D2 | L1 | |
| mm | mm | mm | mm | |
| D1 = 3.00mm | 3.00 | 28.00 | 4.00 | 58.00 |
| D1 = 3.10mm | 3.10 | 28.00 | 4.00 | 58.00 |
| D1 = 3.20mm | 3.20 | 28.00 | 4.00 | 58.00 |
| D1 = 3.30mm | 3.30 | 28.00 | 4.00 | 58.00 |
| D1 = 3.40mm | 3.40 | 28.00 | 4.00 | 58.00 |
| D1 = 3.50mm | 3.50 | 28.00 | 4.00 | 58.00 |
| D1 = 3.60mm | 3.60 | 28.00 | 4.00 | 58.00 |
| D1 = 3.70mm | 3.70 | 28.00 | 4.00 | 58.00 |
| D1 = 3.80mm | 3.80 | 36.00 | 4.00 | 66.00 |
| D1 = 3.90mm | 3.90 | 36.00 | 4.00 | 66.00 |
| D1 = 4.00mm | 4.00 | 36.00 | 4.00 | 66.00 |
| D1 = 4.10mm | 4.10 | 36.00 | 6.00 | 74.00 |
| D1 = 4.20mm | 4.20 | 36.00 | 6.00 | 74.00 |
| D1 = 4.30mm | 4.30 | 36.00 | 6.00 | 74.00 |
| D1 = 4.40mm | 4.40 | 36.00 | 6.00 | 74.00 |
| D1 = 4.50mm | 4.50 | 36.00 | 6.00 | 74.00 |
| D1 = 4.60mm | 4.60 | 36.00 | 6.00 | 74.00 |
| D1 = 4.70mm | 4.70 | 36.00 | 6.00 | 74.00 |
| D1 = 4.80mm | 4.80 | 44.00 | 6.00 | 82.00 |
| D1 = 4.90mm | 4.90 | 44.00 | 6.00 | 82.00 |
| D1 = 5.00mm | 5.00 | 44.00 | 6.00 | 82.00 |
| D1 = 5.10mm | 5.10 | 44.00 | 6.00 | 82.00 |
| D1 = 5.20mm | 5.20 | 44.00 | 6.00 | 82.00 |
| D1 = 5.30mm | 5.30 | 44.00 | 6.00 | 82.00 |
| D1 = 5.40mm | 5.40 | 44.00 | 6.00 | 82.00 |
| D1 = 5.50mm | 5.50 | 44.00 | 6.00 | 82.00 |
| D1 = 5.60mm | 5.60 | 44.00 | 6.00 | 82.00 |
| D1 = 5.70mm | 5.70 | 44.00 | 6.00 | 82.00 |
| D1 = 5.80mm | 5.80 | 44.00 | 6.00 | 82.00 |
| D1 = 5.90mm | 5.90 | 44.00 | 6.00 | 82.00 |
| D1 = 6.00mm | 6.00 | 53.00 | 8.00 | 91.00 |
| D1 = 6.10mm | 6.10 | 53.00 | 8.00 | 91.00 |
| D1 = 6.20mm | 6.20 | 53.00 | 8.00 | 91.00 |
| D1 = 6.30mm | 6.30 | 53.00 | 8.00 | 91.00 |
| D1 = 6.40mm | 6.40 | 53.00 | 8.00 | 91.00 |
| D1 = 6.50mm | 6.50 | 53.00 | 8.00 | 91.00 |
| D1 = 6.60mm | 6.60 | 53.00 | 8.00 | 91.00 |
| D1 = 6.70mm | 6.70 | 53.00 | 8.00 | 91.00 |
| D1 = 6.80mm | 6.80 | 53.00 | 8.00 | 91.00 |
| D1 = 6.90mm | 6.90 | 53.00 | 8.00 | 91.00 |
| D1 = 7.00mm | 7.00 | 53.00 | 8.00 | 91.00 |
| D1 = 7.10mm | 7.10 | 53.00 | 8.00 | 91.00 |
| D1 = 7.20mm | 7.20 | 53.00 | 8.00 | 91.00 |
| D1 = 7.30mm | 7.30 | 53.00 | 8.00 | 91.00 |
| D1 = 7.40mm | 7.40 | 53.00 | 8.00 | 91.00 |
| D1 = 7.50mm | 7.50 | 53.00 | 8.00 | 91.00 |
| D1 = 7.60mm | 7.60 | 53.00 | 8.00 | 91.00 |
| D1 = 7.70mm | 7.70 | 53.00 | 8.00 | 91.00 |
| D1 = 7.80mm | 7.80 | 53.00 | 8.00 | 91.00 |
| D1 = 7.90mm | 7.90 | 53.00 | 8.00 | 91.00 |
| D1 = 8.00mm | 8.00 | 53.00 | 8.00 | 91.00 |
| D1 = 8.10mm | 8.10 | 61.00 | 10.00 | 103.00 |
| D1 = 8.20mm | 8.20 | 61.00 | 10.00 | 103.00 |
| D1 = 8.30mm | 8.30 | 61.00 | 10.00 | 103.00 |
| D1 = 8.40mm | 8.40 | 61.00 | 10.00 | 103.00 |
| D1 = 8.50mm | 8.50 | 61.00 | 10.00 | 103.00 |
| D1 = 8.60mm | 8.60 | 61.00 | 10.00 | 103.00 |
| D1 = 8.70mm | 8.70 | 61.00 | 10.00 | 103.00 |
| D1 = 8.80mm | 8.80 | 61.00 | 10.00 | 103.00 |
| D1 = 8.90mm | 8.90 | 61.00 | 10.00 | 103.00 |
| D1 = 9.00mm | 9.00 | 61.00 | 10.00 | 103.00 |
| D1 = 9.10mm | 9.10 | 61.00 | 10.00 | 103.00 |
| D1 = 9.20mm | 9.20 | 61.00 | 10.00 | 103.00 |
| D1 = 9.30mm | 9.30 | 61.00 | 10.00 | 103.00 |
| D1 = 9.40mm | 9.40 | 61.00 | 10.00 | 103.00 |
| D1 = 9.50mm | 9.50 | 61.00 | 10.00 | 103.00 |
| D1 = 9.60mm | 9.60 | 61.00 | 10.00 | 103.00 |
| D1 = 9.70mm | 9.70 | 61.00 | 10.00 | 103.00 |
| D1 = 9.80mm | 9.80 | 61.00 | 10.00 | 103.00 |
| D1 = 9.90mm | 9.90 | 61.00 | 10.00 | 103.00 |
| D1 = 10.00mm | 10.00 | 61.00 | 10.00 | 103.00 |
Tolerance
| D | D(m7) | d(h6) |
|---|---|---|
| ≤ 3 | +0.002~+0.080 | 0.000~-0.006 |
| 3~6 | +0.004~+0.012 | 0.000~-0.008 |
| 6~10 | +0.006~+0.015 | 0.000~-0.009 |
| 10~18 | +0.007~+0.018 | 0.000~-0.011 |
| 18~30 | +0.008~+0.021 | 0.000~-0.013 |
Cutting Data
