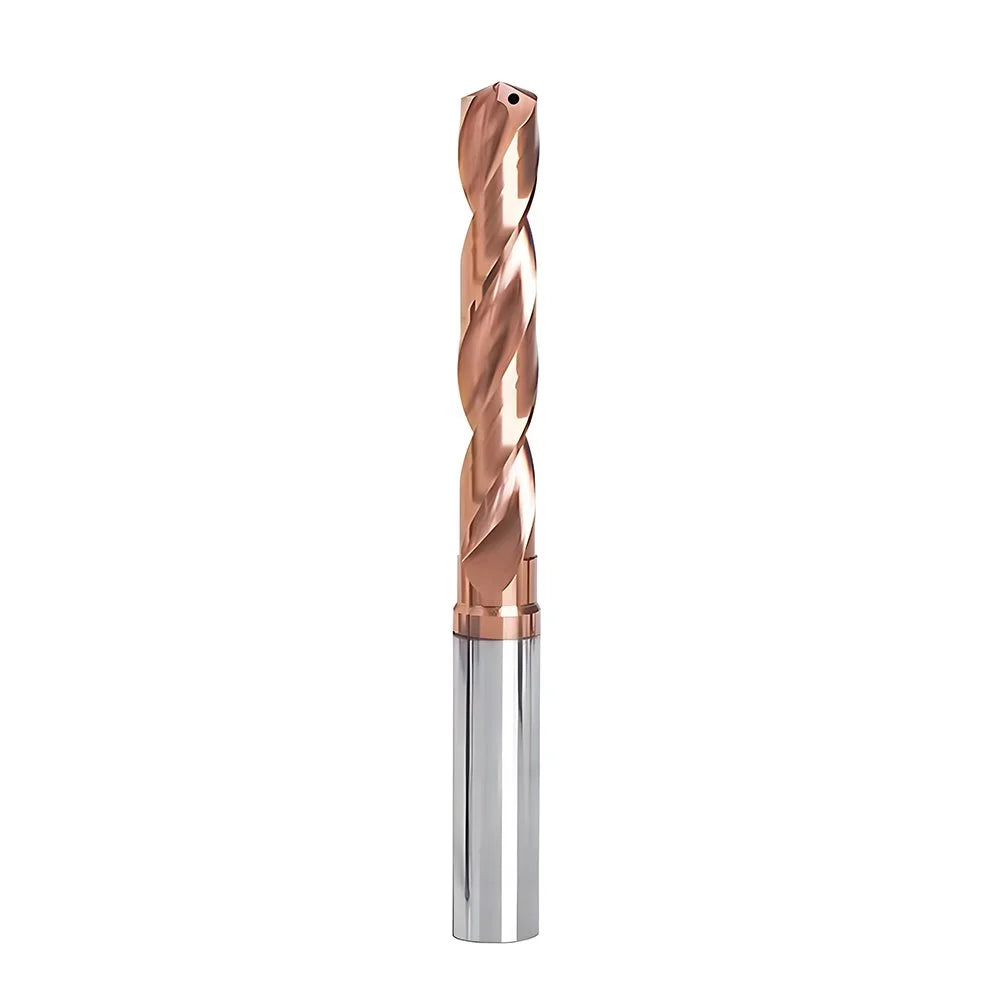

Carbide Coolant Drills, 5D, 10mm~20mm
Carbide Coolant Drills, 5D, 10mm~20mm
Couldn't load pickup availability
The Solid Carbide Spiral Drill with internal cooling has been specifically developed to meet the highest requirements in industrial drilling technology. This high-performance drill impresses with its exceptional versatility and efficiency in processing a variety of materials, including steel, stainless steel, cast iron, heat-resistant superalloys, and titanium.
Features
- Versatile Applicability: Suitable for a variety of materials, perfect for diverse industrial applications
- Effective Internal Cooling: Integrated coolant channels improve cooling directly at the cutting tip and increase tool life
- Optimized Centering Performance: Unique center tip design allows for precise and clean drilling
- Strong cutting edges and smooth chip flow
- Continuous, smooth flute surface with no obstructions to chip flow, preventing chip clogging and forming well-shaped chips
- Excellent wear resistance and high-speed machining enabled by the combination of ultra-fine cemented carbide and TiSiN coating
Specs
| Use for | Drilling/Step Processing | Tool Material | Carbide |
|---|---|---|---|
| Workpiece Material | General Steel / Tempered Steel / High Hardness Steel (up to HRC55) / Stainless Steel / Cast Iron / Aluminum / Titanium / Copper | Coating | TiSiN Coating |
| Flute | 2 | Flute | 2 |
| Tool Made By | Germany Walter CNC Grinder Checked By Germany Zoller Inspector |
Shank Norm | DIN 6535 HA Straight Cylinder shank without clamping surface |
| Cutter Tolerance | 0～+0.005 m7 |
Shank Tolerance | ≤h6 H7 |
Product Table
| Code | CUTTER DIAMETER (D1) * | LENGTH OF CUT (L2) * | SHANK DIAMETER (D2) * | OVERALL LENGTH (L1) * |
|---|---|---|---|---|
| D1 | L2 | D2 | L1 | |
| mm | mm | mm | mm | |
| D1 = 10.00mm | 10.00 | 61.00 | 10.00 | 103.00 |
| D1 = 10.10mm | 10.10 | 71.00 | 12.00 | 118.00 |
| D1 = 10.20mm | 10.20 | 71.00 | 12.00 | 118.00 |
| D1 = 10.30mm | 10.30 | 71.00 | 12.00 | 118.00 |
| D1 = 10.40mm | 10.40 | 71.00 | 12.00 | 118.00 |
| D1 = 10.50mm | 10.50 | 71.00 | 12.00 | 118.00 |
| D1 = 10.60mm | 10.60 | 71.00 | 12.00 | 118.00 |
| D1 = 10.70mm | 10.70 | 71.00 | 12.00 | 118.00 |
| D1 = 10.80mm | 10.80 | 71.00 | 12.00 | 118.00 |
| D1 = 10.90mm | 10.90 | 71.00 | 12.00 | 118.00 |
| D1 = 11.00mm | 11.00 | 71.00 | 12.00 | 118.00 |
| D1 = 11.10mm | 11.10 | 71.00 | 12.00 | 118.00 |
| D1 = 11.20mm | 11.20 | 71.00 | 12.00 | 118.00 |
| D1 = 11.30mm | 11.30 | 71.00 | 12.00 | 118.00 |
| D1 = 11.40mm | 11.40 | 71.00 | 12.00 | 118.00 |
| D1 = 11.50mm | 11.50 | 71.00 | 12.00 | 118.00 |
| D1 = 11.60mm | 11.60 | 71.00 | 12.00 | 118.00 |
| D1 = 11.70mm | 11.70 | 71.00 | 12.00 | 118.00 |
| D1 = 11.80mm | 11.80 | 71.00 | 12.00 | 118.00 |
| D1 = 11.90mm | 11.90 | 71.00 | 12.00 | 118.00 |
| D1 = 12.00mm | 12.00 | 71.00 | 12.00 | 118.00 |
| D1 = 12.10mm | 12.10 | 77.00 | 14.00 | 124.00 |
| D1 = 12.20mm | 12.20 | 77.00 | 14.00 | 124.00 |
| D1 = 12.30mm | 12.30 | 77.00 | 14.00 | 124.00 |
| D1 = 12.40mm | 12.40 | 77.00 | 14.00 | 124.00 |
| D1 = 12.50mm | 12.50 | 77.00 | 14.00 | 124.00 |
| D1 = 12.60mm | 12.60 | 77.00 | 14.00 | 124.00 |
| D1 = 12.70mm | 12.70 | 77.00 | 14.00 | 124.00 |
| D1 = 12.80mm | 12.80 | 77.00 | 14.00 | 124.00 |
| D1 = 12.90mm | 12.90 | 77.00 | 14.00 | 124.00 |
| D1 = 13.00mm | 13.00 | 77.00 | 14.00 | 124.00 |
| D1 = 13.10mm | 13.10 | 77.00 | 14.00 | 124.00 |
| D1 = 13.20mm | 13.20 | 77.00 | 14.00 | 124.00 |
| D1 = 13.30mm | 13.30 | 77.00 | 14.00 | 124.00 |
| D1 = 13.40mm | 13.40 | 77.00 | 14.00 | 124.00 |
| D1 = 13.50mm | 13.50 | 77.00 | 14.00 | 124.00 |
| D1 = 13.60mm | 13.60 | 77.00 | 14.00 | 124.00 |
| D1 = 13.70mm | 13.70 | 77.00 | 14.00 | 124.00 |
| D1 = 13.80mm | 13.80 | 77.00 | 14.00 | 124.00 |
| D1 = 13.90mm | 13.90 | 77.00 | 14.00 | 124.00 |
| D1 = 14.00mm | 14.00 | 77.00 | 14.00 | 124.00 |
| D1 = 14.10mm | 14.10 | 83.00 | 16.00 | 133.00 |
| D1 = 14.20mm | 14.20 | 83.00 | 16.00 | 133.00 |
| D1 = 14.30mm | 14.30 | 83.00 | 16.00 | 133.00 |
| D1 = 14.40mm | 14.40 | 83.00 | 16.00 | 133.00 |
| D1 = 14.50mm | 14.50 | 83.00 | 16.00 | 133.00 |
| D1 = 14.60mm | 14.60 | 83.00 | 16.00 | 133.00 |
| D1 = 14.70mm | 14.70 | 83.00 | 16.00 | 133.00 |
| D1 = 14.80mm | 14.80 | 83.00 | 16.00 | 133.00 |
| D1 = 14.90mm | 14.90 | 83.00 | 16.00 | 133.00 |
| D1 = 15.00mm | 15.00 | 83.00 | 16.00 | 133.00 |
| D1 = 15.10mm | 15.10 | 83.00 | 16.00 | 133.00 |
| D1 = 15.20mm | 15.20 | 83.00 | 16.00 | 133.00 |
| D1 = 15.30mm | 15.30 | 83.00 | 16.00 | 133.00 |
| D1 = 15.40mm | 15.40 | 83.00 | 16.00 | 133.00 |
| D1 = 15.50mm | 15.50 | 83.00 | 16.00 | 133.00 |
| D1 = 15.60mm | 15.60 | 83.00 | 16.00 | 133.00 |
| D1 = 15.70mm | 15.70 | 83.00 | 16.00 | 133.00 |
| D1 = 15.80mm | 15.80 | 83.00 | 16.00 | 133.00 |
| D1 = 15.90mm | 15.90 | 83.00 | 16.00 | 133.00 |
| D1 = 16.00mm | 16.00 | 83.00 | 16.00 | 133.00 |
| D1 = 16.10mm | 16.10 | 93.00 | 18.00 | 143.00 |
| D1 = 16.20mm | 16.20 | 93.00 | 18.00 | 143.00 |
| D1 = 16.30mm | 16.30 | 93.00 | 18.00 | 143.00 |
| D1 = 16.40mm | 16.40 | 93.00 | 18.00 | 143.00 |
| D1 = 16.50mm | 16.50 | 93.00 | 18.00 | 143.00 |
| D1 = 16.60mm | 16.60 | 93.00 | 18.00 | 143.00 |
| D1 = 16.70mm | 16.70 | 93.00 | 18.00 | 143.00 |
| D1 = 16.80mm | 16.80 | 93.00 | 18.00 | 143.00 |
| D1 = 16.90mm | 16.90 | 93.00 | 18.00 | 143.00 |
| D1 = 17.00mm | 17.00 | 93.00 | 18.00 | 143.00 |
| D1 = 17.10mm | 17.10 | 93.00 | 18.00 | 143.00 |
| D1 = 17.20mm | 17.20 | 93.00 | 18.00 | 143.00 |
| D1 = 17.30mm | 17.30 | 93.00 | 18.00 | 143.00 |
| D1 = 17.40mm | 17.40 | 93.00 | 18.00 | 143.00 |
| D1 = 17.50mm | 17.50 | 93.00 | 18.00 | 143.00 |
| D1 = 17.60mm | 17.60 | 93.00 | 18.00 | 143.00 |
| D1 = 17.70mm | 17.70 | 93.00 | 18.00 | 143.00 |
| D1 = 17.80mm | 17.80 | 93.00 | 18.00 | 143.00 |
| D1 = 17.90mm | 17.90 | 93.00 | 18.00 | 143.00 |
| D1 = 18.00mm | 18.00 | 93.00 | 18.00 | 143.00 |
| D1 = 18.10mm | 18.10 | 101.00 | 20.00 | 153.00 |
| D1 = 18.20mm | 18.20 | 101.00 | 20.00 | 153.00 |
| D1 = 18.30mm | 18.30 | 101.00 | 20.00 | 153.00 |
| D1 = 18.40mm | 18.40 | 101.00 | 20.00 | 153.00 |
| D1 = 18.50mm | 18.50 | 101.00 | 20.00 | 153.00 |
| D1 = 18.60mm | 18.60 | 101.00 | 20.00 | 153.00 |
| D1 = 18.70mm | 18.70 | 101.00 | 20.00 | 153.00 |
| D1 = 18.80mm | 18.80 | 101.00 | 20.00 | 153.00 |
| D1 = 18.90mm | 18.90 | 101.00 | 20.00 | 153.00 |
| D1 = 19.00mm | 19.00 | 101.00 | 20.00 | 153.00 |
| D1 = 19.10mm | 19.10 | 101.00 | 20.00 | 153.00 |
| D1 = 19.20mm | 19.20 | 101.00 | 20.00 | 153.00 |
| D1 = 19.30mm | 19.30 | 101.00 | 20.00 | 153.00 |
| D1 = 19.40mm | 19.40 | 101.00 | 20.00 | 153.00 |
| D1 = 19.50mm | 19.50 | 101.00 | 20.00 | 153.00 |
| D1 = 19.60mm | 19.60 | 101.00 | 20.00 | 153.00 |
| D1 = 19.70mm | 19.70 | 101.00 | 20.00 | 153.00 |
| D1 = 19.80mm | 19.80 | 101.00 | 20.00 | 153.00 |
| D1 = 19.90mm | 19.90 | 101.00 | 20.00 | 153.00 |
| D1 = 20.00mm | 20.00 | 101.00 | 20.00 | 153.00 |
Tolerance
| D | D(m7) | d(h6) |
|---|---|---|
| ≤ 3 | +0.002~+0.080 | 0.000~-0.006 |
| 3~6 | +0.004~+0.012 | 0.000~-0.008 |
| 6~10 | +0.006~+0.015 | 0.000~-0.009 |
| 10~18 | +0.007~+0.018 | 0.000~-0.011 |
| 18~30 | +0.008~+0.021 | 0.000~-0.013 |
Cutting Data
