Description:
Shank:

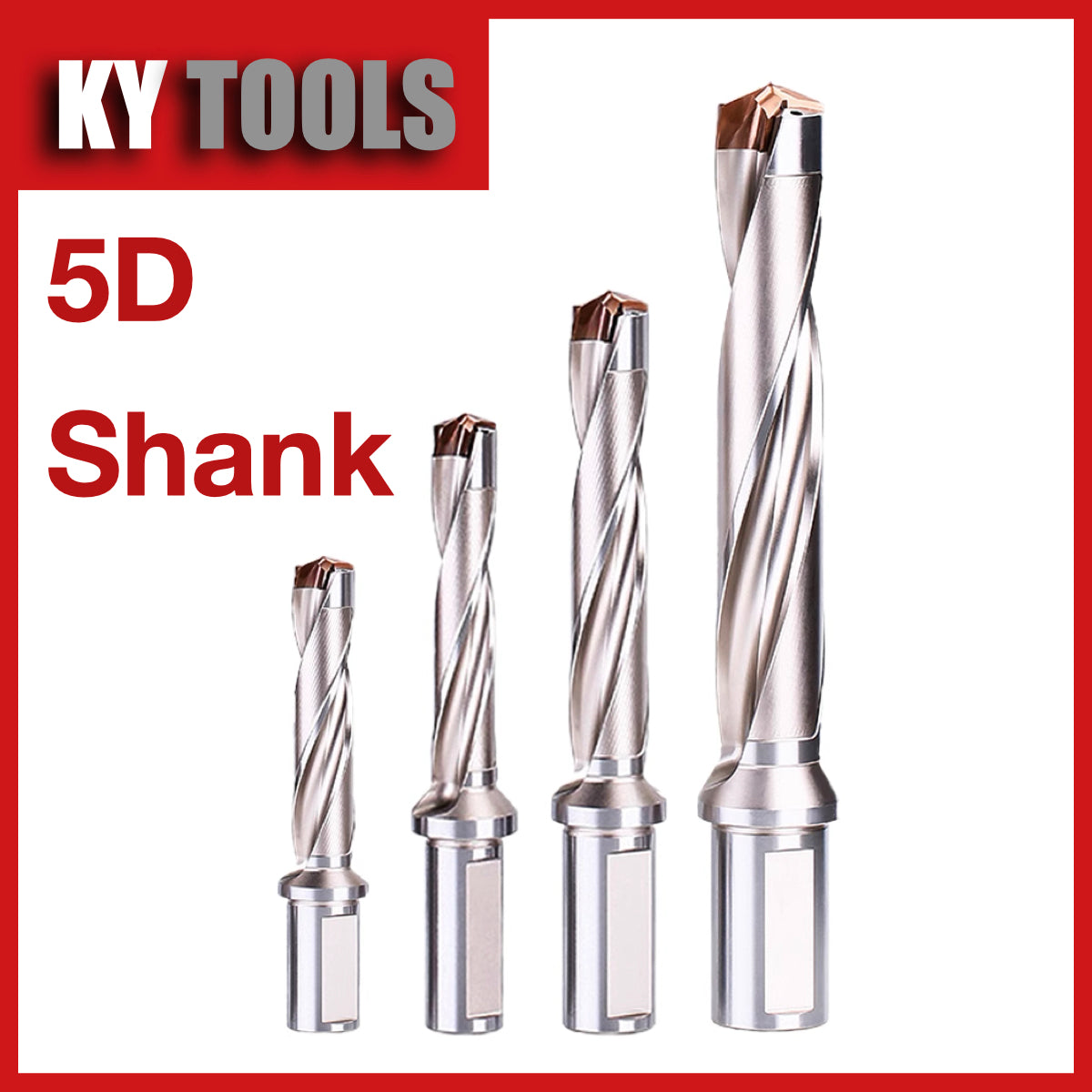

5D Shank
|
5D Shank Flute |
D (Dia of Cut) |
L1 (Length of Flute) |
D1 |
Ds (Dia of Shank) |
Insert Size |
Screws |
Wrench |
|
C20-100-5D |
10 |
50 |
24 |
20 |
CD-10.0-10.9 |
CM2.2*9 |
T6 |
|
C20-110-5D |
11 |
55 |
24 |
20 |
CD-11.0-11.9 |
||
|
C20-120-5D |
12 |
60 |
24 |
20 |
CD-12.0-12.9 |
||
|
C20-130-5D |
13 |
65 |
24 |
20 |
CD-13.0-13.9 |
CM2.5*12 |
T8 |
|
C20-140-5D |
14 |
70 |
24 |
20 |
CD-14.0-14.9 |
||
|
C20-150-5D |
15 |
75 |
24 |
20 |
CD-15.0-15.9 |
||
|
C20-160-5D |
16 |
80 |
24 |
20 |
CD-16.0-16.9 |
CM2.5*14.2 |
T8 |
|
C20-170-5D |
17 |
85 |
24 |
20 |
CD-17.0-17.9 |
||
|
C20-180-5D |
18 |
90 |
24 |
20 |
CD-18.0-18.9 |
CM3*16.5 |
T10 |
|
C25-190-5D |
19 |
95 |
29 |
25 |
CD-19.0-19.9 |
||
|
C25-200-5D |
20 |
100 |
29 |
25 |
CD-20.0-20.9 |
||
|
C25-210-5D |
21 |
105 |
29 |
25 |
CD-21.0-21.9 |
CM3*19.7 |
T10 |
|
C25-220-5D |
22 |
110 |
29 |
25 |
CD-22.0-22.9 |
||
|
C25-230-5D |
23 |
115 |
29 |
25 |
CD-23.0-23.9 |
||
|
C32-240-5D |
24 |
120 |
39 |
32 |
CD-24.0-24.9 |
CM5*22.5 |
T15 |
|
C32-250-5D |
25 |
125 |
39 |
32 |
CD-25.0-25.9 |
||
|
C32-260-5D |
26 |
130 |
39 |
32 |
CD-26.0-26.9 |
CM3.5*24 |
T15 |
|
C32-270-5D |
27 |
135 |
39 |
32 |
CD-27.0-27.9 |
||
|
C32-280-5D |
28 |
140 |
39 |
32 |
CD-28.0-28.9 |
CM4*25.5 |
T15 |
|
C32-290-5D |
29 |
145 |
39 |
32 |
CD-29.0-29.9 |
||
|
C32-300-5D |
30 |
150 |
39 |
32 |
CD-30.0-30.9 |
CM5*27.5 |
T20 |
|
C32-310-5D |
31 |
155 |
39 |
32 |
CD-31.0-32.0 |
The KYTOOLS Modular Drill, featuring an advanced carbide tip insert with GTPM geometry, is engineered for high-performance modular drilling applications. Designed for precision, durability, and versatility, it delivers excellent chip evacuation, longer tool life, and superior hole quality across a wide range of materials—including steel, stainless steel, cast iron, and non-ferrous alloys. Whether in high-speed CNC environments or demanding production lines, KYTOOLS ensures consistent performance and productivity.
Achieve savings exceeding 75% compared to prices found on competitor websites.
